Special Purpose Machines

We are engaged in manufacture a qualitative range of Special Purpose Machines in Bangalore, India. Special Purpose Machines are used in various sectors and are highly praised in between our patrons for its easy installation and uninterrupted performance. The special machines which we can design and manufacture are of two categories and are as follows :

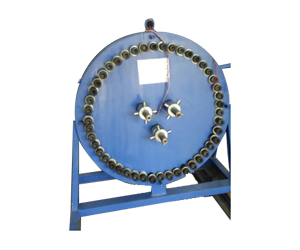

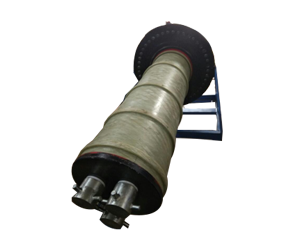

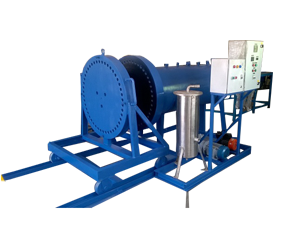

  SPECIAL PURPOSE MACHINES (SPMs)

  Scope of work   Design, Manufacture & installation
  Chamber size   Diameter 550mm x 2500mm long
  Design pressure   250 kg/cm2
  Working pressure   200 Kg/cm2
  Design code   As per ASME Sec VIII Dev -1
  Chamber material   SA 240 GR 570
  Purpose   To conduct pressure test of FRP tubes

Features
1. Provided fixture to hold the FRP tubes
2. Initial air is removing by vacuum pump
3. Pressurizing by water by booster and screw pumps
4. Automatic pumps off, when pressure reached set points

Applications
1. Testing of FRP tubes

Supplied to
M/s Ashwin Industries, peenya, Bangalore

Special Purpose Machines
Special Purpose Machines
Special Purpose Machines

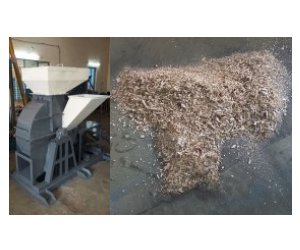

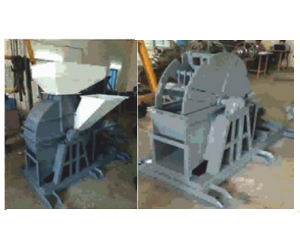

  WOOD CHIPPING MACHINE

  Scope of work   Design, Manufacture & installation
  Impeller Size   Diameter 1000 mm
  Rotation   1440 rpm
  No’s of blades   4 no’s
  No’s of beaters   4 no’s
  Motor power   60 HP/15 kw, 415v,3ph
  MOC   M S
  Purpose   To make wood power crystal of cutting size of 3 to 4 mm for briquetting

Features
1. Top and side feeding facility of the wood pieces
2. Side feed 4 no’s of cuttings blades are provided for feeding wood
3. Beaters are provided circumferentially for feeding little barks of trees
4. Mesh is provided at exist to maintain the wood crystal sizes

Applications
1. These wood power crystals are directly send for briquetting

Supplied to
M/S Shasidhar

Wood Chipping Machines
Wood Chipping Machines

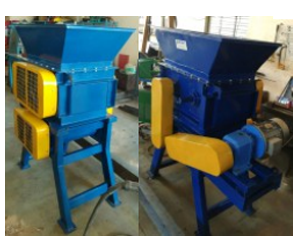

  DRY & WET MUD CRUSHER

  Scope of work   Design, Manufacture & installation
  No of stages   2 stages
  Rotation   400 rpm
  First stage rollers   12”
  Second stage rollers   12”
  Motor power   7.5 HP/5 kw, 415v,3ph
  MOC   M S
  Purpose   To make dry & wet mud sand particles

Features
1. Top feeding manual / conveyers
2. Dry & wet mud are crushed
3. Providing two stage crusher output is fine particle of sand
4. Easy to handle of machines

Applications
1. This machine used to make fine particle from waste sands like cements, mud, stones, etc., and send to making sand brisks

Supplied to
M/s Ashwin Industries, peenya, Bangalore
End user is RV College of engineering, Bangalore

Dry Wet Mud Crusher

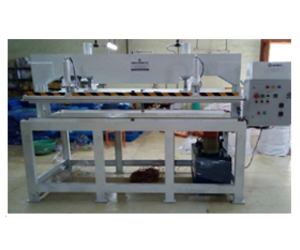

  HYDRAULIC PACK SEALING & PRESSING MACHINE

  Control Type   Automatic, Semi-Automatic Max Force or Load 8 -10 ton
  Machine size   2200x1000x1400mm
  Brand   Mechsmith Electric
  Motor   3HP/2.3kw, 415V, 3phase
  Type of heater   Resistance heaters, 80V
  Application   cotton industries
Hydraulic Pack Sealing

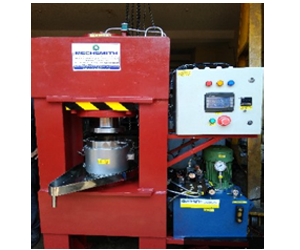

  AUTOMATIC HYDRAULIC COCOA OIL EXTRACTION MACHINE

  Model   H Farm Hydraulic press
  Work pressure   250
  Work force   100 ton
  Oil extraction   4 – 5Ltr
  Process time   10-12 minutes
  Pressing containers   SS 304
  Filters   Paper & cotton  liters(food grade)
  Motor power   2 Hp
  Heater   2 Kw, single phase,
  Ejection cylinder   5 ton
  Type of control   Automatic/semiautomatic

Features
1. Low power consuming 2. High tonnage capacity 3. easy to operate 4. High oil yielding rate 5. save labor

Functions
It will take better effect for dehydration, oil removing, fluid ex attraction and other industrial chemicals. Besides, the hydraulic oil press can squeeze (cold pressing) many kinds of high oil crops, such as, walnut, almond, pine nut, sesame, olive, camellia seeds, etc. What is more, it is easy to learn, and it just only needs one operator.

Automation Hydraulic Cocoa Oil
