Mechsmith Technologies is one of the renowned Hydraulic Cylinders manufacturers in Bangalore, India offering an exclusive array of Hydraulic Cylinders to the clients. Based on clients requirement we design & manufacture these Hydraulic Cylinders in different pressure ranges. It has many applications notably in aerospace industries, power plants, marine applications, agro industries and huge machinery processing industries and many more. Moreover, our Hydraulic Cylinders enhance smooth operation during all heavy duty applications. Hydraulic Cylinders which we manufacture in Bangalore are as follows:

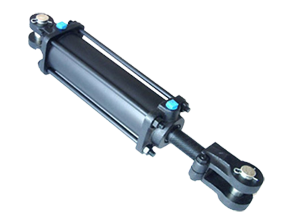

Tie Rod Construction Cylinders :
| Working Pressure |
Upto 250 Kg/cm2 |
| Bore |
Ø 25 mm to Ø 250 mm |
| Stroke |
Upto 2500 mm |
| Mounting |
Standard Mounting & to Customers Specification |
| Application |
Machine Tools, SPM, General Engineering,
Food and processing industry etc. |

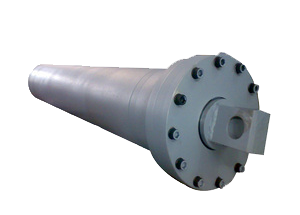

Non Tie Rod Construction Cylinders :
| Working Pressure |
Upto 300 Kg/cm2 |
| Bore |
Ø 40 mm to Ø 400 mm |
| Stroke |
Upto 3000 mm |
| Mounting |
Standard Mounting style & to Customers Specification |
| Application |
Earth moving, Defense, Material Handling , Heavy duty applications, General Engineering etc. |

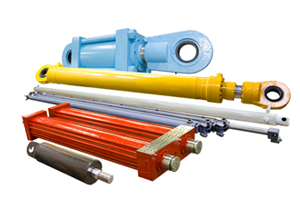

Cylinders for Earth Moving Applications:
| Working Pressure |
Upto 300 Kg/cm2 |
| Bore |
Ø 50 mm to Ø 350 mm & OEM size as well |
| Stroke |
Upto 3000 mm |
| Mounting |
Various types and according to OEM Specification |
| Application |
Earth Moving Equipment, etc. |

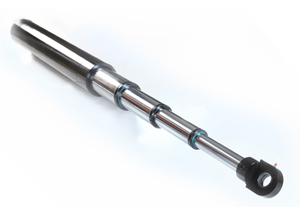

Telescopic Cylinders:
| Working Pressure |
Upto 250 Kg/cm2 |
| Type |
Single acting and double acting |
| Single Acting |
Up to 5 Stage |
| Double Acting |
Up to 3 stage |
| Mounting |
For Various specifications |
| Application |
Tipper –Tractor , Lorry , Material Handling etc. |
