Riveting machines will be designed, manufactured and supplied as per customer requirement.

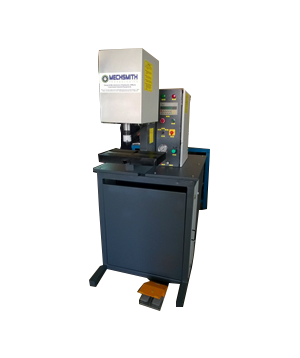

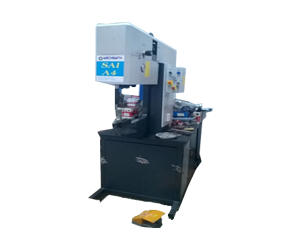

4-6 TON RIVETING MACHINE- AUTO OPERATION
| Type of press |
C- frame |
| Load |
1000 - 4000 kg |
| Stroke |
300mm |
| Speed |
100 mm/sec |
| Power |
3HP, 3ph. 415v |
| Riveting sizes |
M2 to M10 |
Features
1. Rigid & compact
2. Electrical semi-automatic & automatic type
3. PLC controller
4. Tonnage/force adjustment facilities
5. Stroke adjustment facilities
6. Hand safety touch sensors
7. 700 to 800 Riveting / hour
Applications
1. All sheet metal electrical cabinets riveting is using these machines
2. Copper bus bar joining (electrical power supply)
Supplied to
1. M/s. Sri Sai Industries – Peenya, Bangalore
2. M/s. Sigma puching pvt, Ltd., Peenya Bangalore
3. M/s. Coprod industrial pvt Ltd., Tumkur
4. M/s. Medi-Equipment , Peenya Bangalore

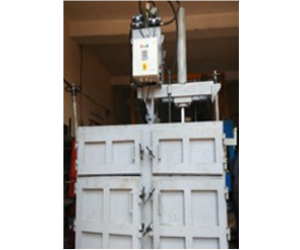

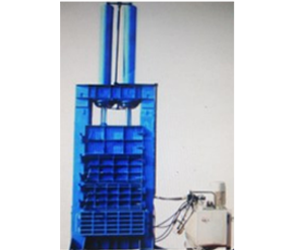

50,000 Kg FORCE (50 Ton) VERTICAL BALER MACHINE
| Type of press |
H – frame |
| Load |
50,000 -60,000 kg F |
| Stroke |
1200mm |
| Speed |
25 mm /sec |
| Power |
10 HP , 15 Hp,20 HP,3ph.415v |
| Bed sizes |
Variable |
Features
1. Rigid and compact
2. Electrical semi-automatic & automatic type
3. Tonnage/force adjustment facilities
4. Stroke adjustment facilities
5. Cotton pet bottles, plastics, paers,card board, plastic covers,oil tin boxes,charcoal powder,metal scarps & coconut coires etc
6. 4 to 8 blades /hour
7. Self bale ejection and auto ejection systems
8. Baling weight from 30 to 80 kg
9. Less maintenance
Applications
1. All industrial scarps dealers are using to reduce the transportation
2. Able to make multiple make wastes materials ballins like pet bottles, plastics, paers,card board, plastic covers,oil tin boxes,charcoal powder,metal scarps & coconut coires etc

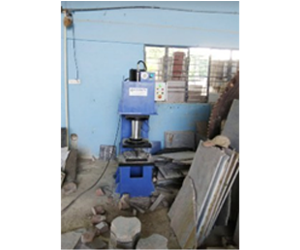

50 TON GRANITE STAMPING STAMPLING MACHINE
| Type of press |
C- frame |
| Load |
50,000 -60,000 kg F |
| Stroke |
500mm |
| Speed |
25 mm /sec |
| Power |
5 HP,3ph.415v |
| Bed sizes |
400x400mm |
Features
1. Rigid and compact
2. Electrical semi-automatic & automatic type
3. Tonnage/force adjustment facilities
4. Stroke adjustment facilities
5. 10 mm to 50 mm thick granite stamping with different shapes
6. Maximum 400 mm diameter stamping is done
7. 500 to 1000 kg / hour
8. Multiple dies of stamping
9. Replacement of dies
10. Less maintenance
Applications
1. Minimize utilization of waste granites, marbles interior decoration at offices and homes
2. All types of marbles / granites/tiles will done with different shapes and size of dies
Supplied to
M/S. Vajra granite Industries, Maddur, Mysore District

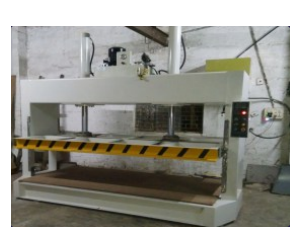

HYDRAULIC COLD PRESS MACHINE FOR WOOD PRESSING
| Product Name Cold |
pressing machine |
| Working table size |
1250*2500mm |
| Max. Pressure |
30, 30, 75,100ton |
| Max Platform opening |
1500mm power 5, 7.5, Hp |
| Power |
3HP, 3ph. 415v |
| Riveting sizes |
M2 to M10 |
Features
1. This cold pressing machine mainly used with pressure and re-pressure to shape of the planel surface glue of wood products and parts.
2. Hydraulic cold pressing machine is widely used in furniture and and other sheet materials production line.
3. Woodworking cold press has good cold pressure quality and high speed and efficiency.
4. Press machine has high pressure automatic control circuit and pressure oil cutting-off protection. When occur the oil cutting-off, the machine will stop itself, avoiding the machine can't rise due to the over pressure, then cause the burn out.

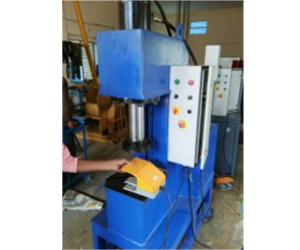

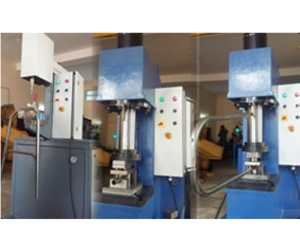

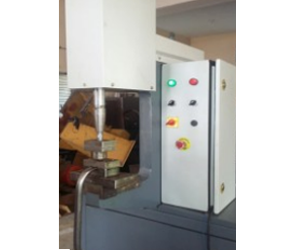

MULTI HOLES PUNCHING PRESS
| Type of press |
C- frame |
| Load |
25,000 -30,000 kg F |
| Stroke |
300mm |
| Speed |
15 mm /sec |
| Power |
3 HP,3ph.415v |
| 6. Bed sizes |
300x300mm |
Features
1. Rigid and compact
2. Electrical semi-automatic & automatic type
3. Tonnage/force adjustment facilities
4. Stroke adjustment facilities
5. T-slots bed is provided to mount different die
6. Less maintenance
Applications
1. Its used for punch the holes on tubes of ½”,3/4”1”1.5” for walker tubes
2. Its used for punching small special washers punching and sheet punching
3. Embossing of sheets
Supplied to
1. M/S. Medi-equip peenya 2nd stage Bangalore
