Hydraulic Presses

As per international standards and customer consious approach, we are offering our range of Hydraulic Presses throughout Bangalore. These products are manufactured using high-grade raw material and advanced technology and known for its strong and sturdy in nature and ensure longer functional life. These are used for many applications in civil construction sector, automobile industries, mechanical industries, process industries, jewelry industries etc. Some of the types which we design & manufacture in Bangalore, India are as follows:

  13000Kg (13TON) COMPACT HYDRAULIC PRESS

  Type of press   C- frame
  Load   13000- 15000 kg
  Bed size   300x 300mm
  Stroke   300mm
  Speed   10mm/sec
  Power   3HP/, with Hilo system

Applications:
1. For jewelry gold, silver & copper ornamental shape forming.
2. Different types of shape & size foam sheet cutting
3. Bearing insertion
4. Embossing in Numbers in Aluminum plates (vehicle number plate)
5. Paper plates cutting
6. Rubber gasket cuttings

Supplied to
M/s. Grind well Norton – Saint Gobin, Bangalore
M/s. Adithya jewelers chikkapet, Bangalore

COMPACT HYDRAULIC PRESS


  50 TON H - FRAME HYDRAULIC PRESS

  Type of press   H- frame
  Load   50,000- 75,000 kgF
  Bed size   450x 800mm
  Stroke   350mm
  Speed   10 mm/sec
  Power   2HP, 3ph. 415v

Features:
1. Rigid & compact
2. Electrical lever type operation
3. Load varying adjustment

Applications:
1. For jewelry gold, silver & copper ornamental shape forming.
2. Different types of shape & size foam sheet cutting
3. Bearing insertion
4. Straightening of Shaft & beams.

Supplied to
Shree Vinayaka Jewelry Works, Tindlu, Vidyaranyapurum, Bangalore.

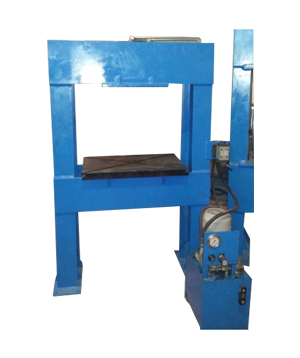

FRAME HYDRAULIC PRESS


  100,000Kg (100 Ton) H-Frame Hydraulic Press

  Type of press   H- frame
  Load   5100,000- 120,000 kg
  Bed size   500x 500mm
  Stroke   300mm
  Speed   10 mm/sec
  Power   10HP, 3ph. 415v

Features:
1. Rigid & compact
2. Electrical lever type operation
3. Tonnage /Force adjustment facilities

Applications:
1. For jewelry gold, silver & copper ornamental shape forming.
2. Different shape & size foam sheet cutting
3. Bearing insertion
4. Straightening of heavy sizes Shaft & I- beams, channels,
5. Deep drawing process

Supplied to
M/s. Grind well Norton – Saint Gobin, Bangalore

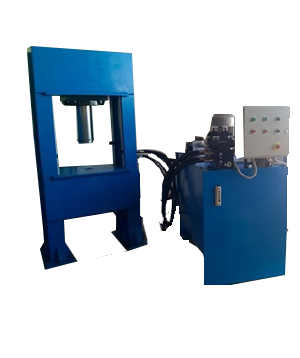

H-FRAME HYDRAULIC PRESS


  Machine Shop Presses

  Type   H Frame Presses with hand pumps ( power packs optional)
  Capacity   2 Ton to 200 Tons
  Features   Manually operated with variable bed heights, hand pump operated and can supply hydraulic power packs as optional.
  Applications   Pressing, Straightening, Bending , Bend removing and other applications at small machine shops.

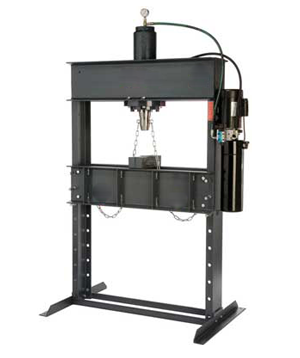

Machine Shop Presses


  Jewelry Presses

  Type   C & H frame Presses with hand pumps ( Power Packs optional)
  Capacity   2ton , 5ton, 10ton, 15ton 25ton, 50ton and 100 ton
  Features   Small presses upto 20 ton are of table top models with compact power packs and upto 50 ton it is C- frame constructions and upto 100 ton and these can be made manually operated and can also supply hydraulic power packs as optional.
  Applications   jewelry Presses are used to press gold pendants, rings, silver utensils etc as required by the customer.

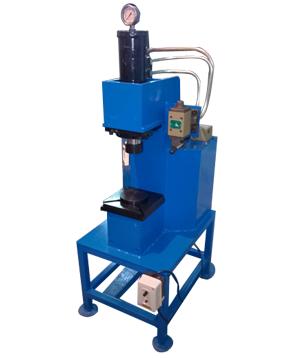

 Jewelry Presses


  Customized Presses

  Type   C & H Frame Presses( 2 pillar & 4 pillar presses), Horizontal presses and custom built presss.
  Capacity   2 Ton to 400 Tons
  Features   Manually operated, Electrically operated and also PLC controlled systems.
  Applications   Paper Plate Presses, Straightening, Riveting, Rubber molding, Plywood and lamination, Metal forming, Carbon Extrusion, Iron Scrap Bailing Press etc., and also as per customer requirements.

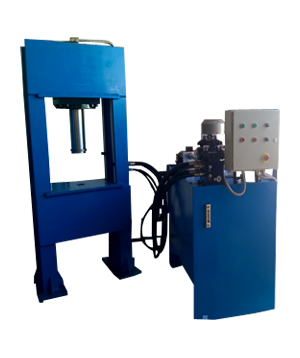

Customized Presses
